Prestige Hopper Tandem Aluminum

DIMENSION
Length 40' or 42'
Exterior Width 96" Standard; 102" Optional
Interior Width 92" Standard, 98" Optional
Wall Height 68", 72", 76"
Overall Height 127" w/ 68" Wall, 131" w/ 72" Wall, 135" w/ 76" Wall
King Pin 18"
Slopes Minimum 33°

VOLUME (CUBIC FEET)
Width 102" 102" 96" 96" 96"
Wall Height 72" 76" 72" 76" 80"
Water Level 1583 1687 1486 1583 1681

RUNNING GEAR
Axles Hendrickson INTRAAX .31" Wall, 5.75" Round, 71.5" Track, HN Spindle; See Available Options
Brake System Air Drum Brake Standard; HXS-H23 Extended Service Linings Standard; Haldex 30/30 Gold Seal; Haldex S-ABA Slack 5.5"; 28 Spline Standard; Meritor Wabco ABS Equipped; See Available Options
Fenders 1/2" Round Stainless Steel Fenders Available
Hubs 10 Stud HP Cast Hub/Cast Drum Standard; See Available Options
Suspension Hendrickson INTRAAX AANT23K LDA Air Ride Standard; Air Gauge Mounted in an Aluminum Box c/w Window and Light. See Available Options.
Tires Michelin/BF Goodrich Standard; See Available Options
Wheel Seals National
Wheels 22.5" Standard; See Available Options

BODY STRUCTURE
Front & Rear Walls Double Wall Construction, .063 Pre-Painted Aluminum Outside Skin, White or Black Colour Options c/w Access Ladders and Catwalk; Radius Corners; Stainless Steel Covers Optional on Front of Lead and Rear of Pull; See Available Options
Hopper Chutes Standard Opening Size - 24" × 27"; Stainless Chute Shafts; 23 1/8" Clearance (w/ 11Rx24.5 Rubber); Optional 32" x 40" Opening Size (21" Clearance)
Hoppers Two Hoppers per Trailer; Center Divider Wall; Two-Piece Hopper Design; Single Row Stiffener On All Sides; Aluminum Chute Frame Huck-Bolted to the Opening
Chute Opener aluminum Frame; Stainless Steel Rack and Pinion Design; Stainless Steel Trap Door
Lighting Seven Wire Connector at Front; Truck-Lite LED Lighting Standard; Lifetime Warranty Lamps; Truck-Lite Wiring Harness; See Available Options
Mud Flaps 1/2" Rubber Anti-Sail Rear Flaps Standard; See Available Options
Paint Three-Stage Paint Process Consisting of a Coating of Zinc, Urethane Primer and Top Coat
Side Walls Double Wall Construction, .063" Pre-Painted Aluminum Outside Skin, White or Black Colour Options; Inside Finished; Walls Vented; See Available Options
Slopes Aluminum Slope Sheets - No Less than 33°
Tarps/Tarp Supports Shur-Lok® Roll Tarp, Reinforced over Roof Bows; Fiberglass Ridge Pole; Aluminum Roof Bows; Aluminum End Caps; Remote Openers; See Available Options
Landing Gear Jost Magnum Aluminum Landing Gear c/w 10" Cushion Foot; 10 Year Warranty

FEATURES LIST

Standard

Standard

Stainless Steel Chute Opener

The chute opener features a stainless steel shaft with high clearance to avoid contact with swing augers.
Standard

High Hopper-to-Ground Clearance

High hopper clearance allows for various sizes of swing-away augers to be used during unloading for maximum flexibility.
Standard

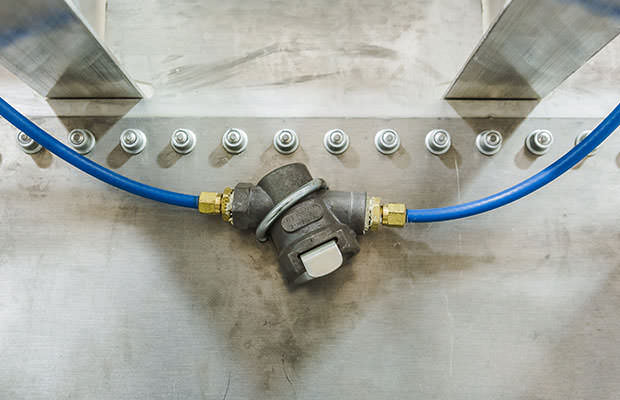

In-Line Air Filter

The in-line air filter protects the air system from inhaling road debris. The filter is serviceable and replaceable.
Standard

Rear Ladder & Catwalk

Standard on all Distinction trailers is ladder access at the front and rear. Catwalks are also added to allow for easier access.
Standard

Landing Gear

Jost aluminum landing gear with 10 year warranty
Standard

Load Gauge Box

The user-friendly load gauge box features a door with a window to monitor loading, and is equipped with an interior light. The enclosure’s positioning avoids interference with any aspect of the unloading process, yet is easily accessible to the operator.
Standard

Optimal Chute Opening Size

The standard ag hopper features a chute opening size of 24" x 27", allowing for quick discharge and easy clean out.
Standard

Smooth Hopper Corners

With smooth inside corners, product flows smoothly with very little remaining after unloading, saving time and effort
Standard

Smooth Walls

Smooth walls help improve the trailer’s structural integrity. Plus, they’re easier to clean and look great!
Standard

Tapered End Walls

Tapered end walls make opening and closing tarps easier because they increase the amount of room between the lead and pull of the Super-B. An added bonus of this design feature is the angled ladder, which makes climbing safer and faster.
Standard

Truck-Lite LED Lighting

A fully sealed wiring harness secured between the walls of the trailer is connected to lifetime-guaranteed TRUCK-LITE LED lights. Up to 4 lighting packages available.
Standard

Upper Coupler

The upper coupler design is one of the most robust in the industry
Standard

Vented Walls

Vents along the lower rail allow for free air movement between the inner and outer walls. This air flow regulates the temperature and humidity differences that produce sweating and cause material to stick to the inside.

Optional

Optional

Aluminum Suspension Frame

An aluminum suspension frame is available as an option.
Optional

Auxiliary Air Supply

An auxiliary air chuck can be installed inside the air gauge box to supply air for a pneumatic vibrator. This handy outlet can also be used to bring tire pressure up to recommended PSI.
Optional

Brake Pot Belting Ahead of Suspension

A 48.5" x 28" full-size flap can be installed in front of the first set of suspension hangers. This not only protects the hanger brackets but also provides full protective coverage for brake pots, axles and air lines.
Optional

Brake Drums

Lightweight options available
Optional

Disk Brakes

Hendrickson MAXX22T air disc brakes.
Optional

Stainless Steel End Walls

Stainless steel front and rear walls are available, as well as stainless steel corner posts on all four corners.
Optional

Electric Remote Tarp Opener

The Shur-Co® 4500 HD Power Tarp Opener is available as an option which comes with a remote opener. Power trap openers are also available as an option.
Optional

Full Close Out Sheets

Full close out sheets protects the area above the king pin section from road grime and snow buildup. They also reduce drag by eliminating wind turbulence in those areas.
Optional

Full Coverage Mudflaps

Four-across full coverage mudflaps ahead of landing gear are available.
Optional

Hubodometer

Available in either miles or kilometers.
Optional

Lift Axles

Run-empty lift axles allow axles to be raised for no-loading driving.
Optional

Lighting Packages

3 lighting packages available.
Optional

Loading and Unloading Lights

LED loading and unloading lights are available.
Optional

Placard Holders

Placard holders for dangerous goods labels.
Optional

Rounded Stainless Steel Fenders

Stainless steel fenders wrap around the tire to prevent road debris being scattered by tires. The fenders are interconnected with a closure plate between them to protect the trailer.
Optional

Stainless Steel Corners

Stainless steel covers on front of lead and rear of pull protect the corners of the trailer from wear and tear and makes cleaning easier.
Optional

Tire Inflation System

Hendrickson TIREMAAX PRO.
Optional

Tires

A wide range of Michelin, Bridgestone and BF Goodrich options are available.
Optional

Vibrator Brackets

Vibrator brackets are mounted to the hopper.
Optional

Wheels

22.5" and 24.5" options available in Aluminum, Dura-Bright, and steel.
