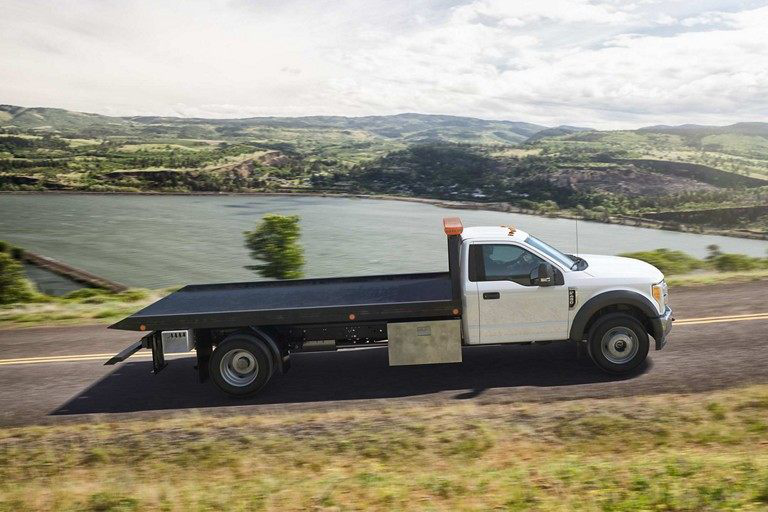

Ford Chassis Cab F450 XL
Take the Tour of the 2017 Ford Super Duty®
Innovations 360 takes you on an interactive tour of the 2019 Ford Super Duty®. Click to the unique high-strength military-grade, aluminum-alloy cab, the best-in-class front gross axle weight rating, as well as class-exclusives like Live-Drive Power Takeoff Provision with Mobile Mode and many others. Discover why this Super Duty is the toughest, smartest, most capable Class 3–5 chassis cab we’ve ever built for your vocation.
Cab & Engine
Cab and Engine
Cab Style |
F450 XL |
|---|---|
| Crew Cab | |
| Regular Cab | |
| Super Cab |
Engine |
F450 XL |
|---|---|
| 6.2L 2-VALVE V8 GAS(1) FFV | |
| 6.8L 3-VALVE V10 GAS | |
| 6.7L POWER STROKE® V8 TURBO DIESEL |
Interior Features
Interior Features
2017 Super Duty® Chassis Cab advances cab convenience with new features such as six upfitter switches (up from four), SYNC® 3, DEF fuel tank gauge (diesel), and more.
Climate |
F450 XL |
|---|---|
| Air Conditioning – Manual Temperature Control | Standard |
| Rapid-Heat Supplemental Cab Heater (requires Power Stroke® Turbo Diesel engine) | Optional |
Comfort and Convenience |
F450 XL |
|---|---|
| Cruise control | Optional |
| Dash-top tray | Standard |
| Dome Lamp – door-activated instrument panel switch operated with delay | Standard |
| Door Trim – armrest/grab handle and reflector | Standard |
| B-Pillar Trim Kit | Optional |
| Door Trim – soft armrest/grab handle, upper and lower map pockets and reflector | Optional |
| Engine Console Cover - Delete | Optional |
| Floor Covering - black vinyl | Standard |
| Grab handles – driver and front passenger and roof ride handles; front passenger (also over rear doors with Crew Cab) | Standard |
| Headliner – color coordinated cloth | Standard |
| Instrument Cluster - 2.3" Productivity Screen | Standard |
| Instrumentation with tachometer and Message Center including odometer, trip odometer, distance-to-empty, average fuel economy, engine hour meter and warning messages | Standard |
| Instrument panel - 8" Productivity Screen | Optional |
| Map lights – dual (front and rear with Crew Cab | Standard |
| Power Equipment - accessory delay | Optional |
| Power Equipment - door locks and windows with one-touch up and down driver and passenger window | Optional |
| Power Equipment Group | Optional |
| Powerpoint - 12v, two instrument panel mounted | Standard |
| Powerpoint, 12v - Rear (SuperCab and SuperCrew®) | Standard |
| Powerpoint - auxiliary, 1 in media bin | Standard |
| Powerpoint - auxiliary, 110-volt/400-watt inverter outlet (one in-dash with 40/20/40 seats, 2nd outlet requires with 40/console/40 seats) | Optional |
| Rearview Mirror - 11.5" day/night | Standard |
| Rear View Camera and Prep Kit | Optional |
| Remote Start System | Optional |
| Steering Wheel Audio Controls | Optional |
| Steering Wheel - vinyl, black | Standard |
| Storage – secondary glove box (4x4 requires Electronic-Shift-On-the-Fly) | Standard |
| Sun visors - color coordinated vinyl, single driver with pocket, single passenger with mirror insert | Standard |
| Tilt/Telescoping steering wheel | Standard |

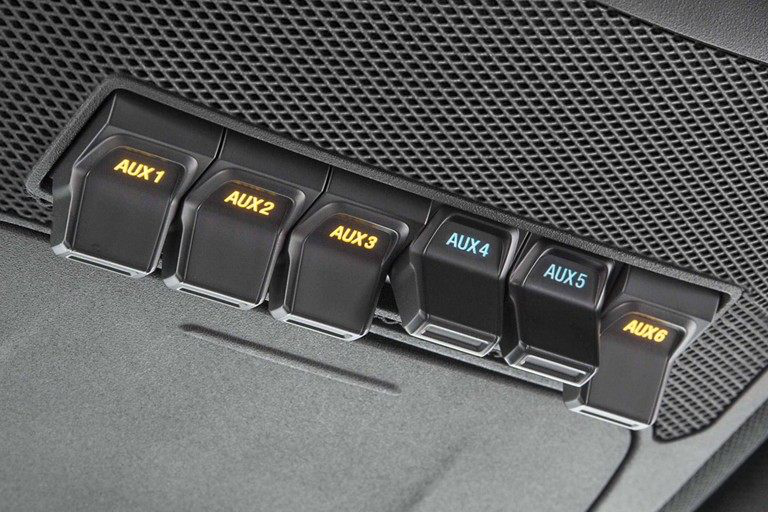

| Upfitter switches located on instrument panel (4) | Standard |
| Windshield wipers – interval control | Standard |
| XL Décor Group | Standard |
Entertainment Systems |
F450 XL |
|---|---|
| Auxiliary audio input jack | Standard |
| Audio – AM/FM Stereo, (4 Speakers) | Standard |
| Premium AM/FM Stereo, (4 Speakers Regular Cab, 6 speakers Super Cab and Crew Cab) | Optional |
| SYNC® Communications and Entertainment System | Optional |
| SiriusXM® Radio | Optional |
Seating |
F450 XL |
|---|---|
| Seats - Front, Vinyl 40/20/40 split bench seat | Standard |
| Seats - Front, Cloth 40/20/40 split bench seat | Optional |
| Seats - Front, Vinyl 40/Mini-Console/40 seats (Regular Cab) | Optional |
| Seats - Front, Cloth 40/Mini-Console/40 Seats | Optional |
| Seats - Front, manual lumbar support, driver side | Standard |
| Seats - Rear, vinyl 60/40 fold-up bench seat (SuperCab) | Standard |
| Seats - Rear, 60/40 bench seat with flip-up/fold-down, two outboard head restraints and a center head restraint (Crew Cab) | Standard |
Exterior Features
Exterior Features
The all-new 2017 Super Duty® Chassis Cab brings more than greater strength and toughness to the job. Four dual-beam halogen headlamps are an industry-first standard feature. And the available PowerScope® trailer tow mirrors provide more features than ever.
Appearance |
F450 XL |
|---|---|
| Bumper, front - black painted steel with black lower air dam | Standard |
| Bumpers, front - chrome steel with black lower air dam | Optional |
| Cab Steps - 6" angular black molded-in color | Standard |
| Platform Running Boards | Optional |
| Door Handles - black | Standard |
| Quad Dual-Beam Halogen Headlamps | Standard |
| Grille - black bar-style | Standard |
| Mirrors - Manual Telescoping Trailer Tow with Manual Glass | Standard |
| Mirrors - Manual Telescoping Trailer Tow with Power Heated Glass and Heated Spotter Mirror | Optional |
| Roof Clearance Lights | Standard |
| Tow hooks – (2) front, black | Standard |
| Splash Guards | Standard |
| Utility Lighting System - LED Side-mirror Spotlights | Optional |
Protection |
F450 XL |
|---|---|
| Skid Plates, transfer case (4x4) | Optional |
| LED Warning Strobes | Optional |
Windows & Glass |
F450 XL |
|---|---|
| Glass – solar tinted | Standard |
| Window - rear, fixed | Standard |
| Window - rear, fixed Privacy with defrost | Optional |
| Window - rear, power sliding with privacy glass and defrost (SuperCab, Crew Cab) | Optional |
Power & Handling
Power and Handling
2017 Super Duty® gas and diesel engines are the most powerful ever offered in Ford Class 3-5 chassis cabs. And for the first time, they're teamed with the Ford TorqShift® 6-speed automatic. What's more, available Live-Drive PTO Provision with Mobile Mode is available with either gas or diesel power.
Handling |
F450 XL |
|---|---|
| Alternator - Single, Extra Heavy-Duty, 220-amp (6.7L) | Optional |
| Alternator - Single, Heavy-Duty, 240-amp (6.7L) | Standard |
| Alternator - Single, Extra Extra-Heavy-Duty, 240-amp (6.7L) | Optional |
| Alternators - Dual, 332-amp total (diesel engine only) | Optional |
| Alternators - Dual, Extra Heavy Duty 377-amp total (diesel engine only) | Optional |
| Axle - Mono-beam front axle with coil spring suspension – (F350 4X4, F450 and F550) | Standard |
| Brakes – 4-wheel power disc brakes with Anti-lock Brake System (ABS); Hydro-boost (DRW) | Standard |
| AdvanceTrac® with Roll Stability Control™ (RSC®) - SRW | Standard |
| Engine-Only Traction Control (EOTC) (DRW) | Standard |
| Trailer Sway Control (SRW) | Standard |
| Tire Pressure Monitoring System (excludes spare) | Standard |
| Engine block heater | Optional |
| Programmable Engine Idle Shutdown (diesel engine only) | Optional |
| Stationary Elevated Idle Control (SEIC) | Standard |
| 40 Gallon aft-axle (F350 SRW with optional payload, F350 DRW / F450 / F550) | Standard |
| Dual Diesel fuel tank | Optiona |
| Shock absorbers – heavy duty gas | Standard |
| Stabilizer bar – front | Standard |
| Steering – power | Standard |
| Steering damper | Standard |
| Aft-Axle Frame Extension (req. 169" or 145" wheelbase) | Optional |
| Integrated Trailer Brake Controller | Optional |
| Transfer Case - Manual 4-Wheel-Drive System with manual locking hubs(4x4 models only) | Standard |
| Transfer Case - Electronic Shift-On-the-Fly (ESOF) 4-Wheel-Drive System (4x4 models only) | Optional |
| Live Drive Power Takeoff Provision with Mobile and Stationary PTO Modes | Optional |
Power |
F450 XL |
|---|---|
| Engine - 6.8L 3-valve SOHC EFI V10 enginee | Standard |
| Engine - 6.7L Power Stroke® V8 Turbo Diesel engine | Optional |
| TorqShift® 6-speed SelectShift™ Automatic Transmission | Optional |
Wheels & Tires |
F450 XL |
|---|---|
| Wheels - 19.5" Argent Painted Steel (DRW) | Standard |
| 225/70Rx19.5G BSW A/S (6) | Standard |
| 225/70Rx19.5G BSW Traction (4 traction tires on rear, 2 A/S tires on front. Optional spare is BSW A/S) | Optional |
| 225/70Rx19.5G BSW Max Traction (4 traction tires on rear, 2 traction tires on front. Optional spare is traction.) (4x4) | Optional |
| Spare Tire & Wheels (Excludes carrier; Includes Hydraulic Jack, Required in RI) | Optional |
| Hydraulic Jack (2-ton – F350 SRW / 4-Ton – F350 DRW / 6-ton F450 & F550) | Optional |
Safety
Safety
The all-new Super Duty® Chassis Cab offers available rear outboard inflatable safety belts in the 4-door Crew Cab. And standard is a Tire Pressure Monitoring System with in-dash display.
Safety |
F450 XL |
|---|---|
| Airbags — front seat front with passenger side deactivation switch (Regular Cab and SuperCab only) | Standard |
| Airbags — front seat side | Standard |
| Airbags — Safety Canopy® System with roll-fold side-curtain airbags | Standard |
| Belt-Minder®, chime and flashing warning light on instrument cluster if belts not buckled | Standard |
| Child tethers (Regular Cab, front passenger and all rear seating positions) | Standard |
| Seat Belts - color coordinated with height adjustment | Standard |
| Seat Belts - Rear Inflatable (Crew Cab Only) | Optional |
| SOS Post Crash Alert System | Standard |
Security |
F450 XL |
|---|---|
| Remote keyless entry and perimeter anti-theft alarm | Optional |
| SecuriLock® Anti-Theft Ignition | Standard |
| MyKey® | Standard |
| Autolamp (Auto On/Off Headlamps) with Rainlamp Wiper Activated Headlamps | Standard |
