KENWORTH T680 ADVANTAGE
Most advanced and aerodynamic

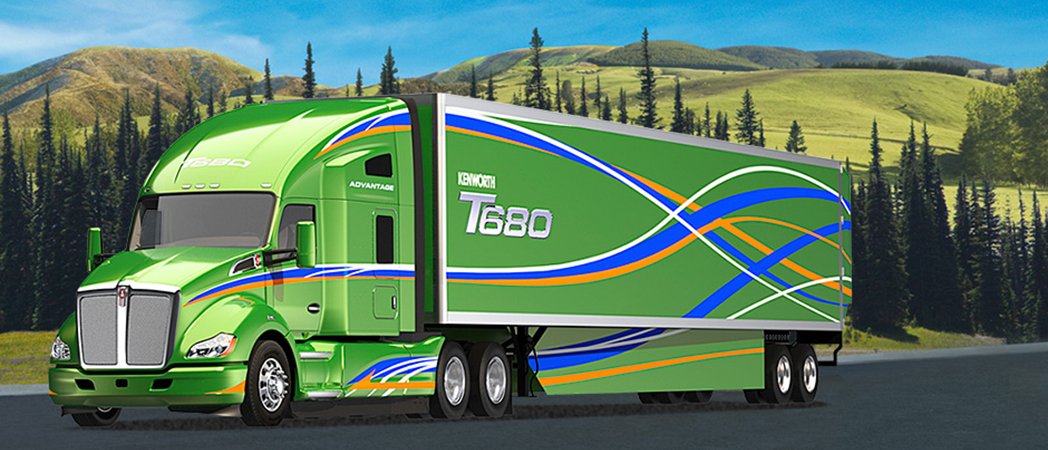

KENWORTH T680 ADVANTAGE.
The ultra-aerodynamic T680 Advantage from Kenworth squeezes every possible mile from a gallon of fuel.
Start with the most highly evolved aerodynamic long-haul tractor. Add special factory-installed aerodynamic enhancements for the tractor that combine to reduce drag to an absolute minimum. Optimize the powertrain with the fuel efficient PACCAR MX-13 engine, PACCAR transmission and PACCAR drive axles.
PACCAR MX-13 Povered By Quality
![Kenworth W900 PACCAR MX-13 Engine]()
![Kenworth W900 PACCAR MX-13 Torque]()
* Determined By Engine Horsepower And Idle Setting
** Extended Protection Plans Available
At the heart of the T680 Advantage is a fully optimized and integrated drivetrain featuring the quality and proven reliability of the PACCAR MX-13 engine. These highly efficient, clean running engines deliver up to 510 hp and 1,850 lb-ft of torque – all the muscle you need to do the job.
In addition to industry-leading fuel economy, the PACCAR MX-13 employs innovative high-strength yet lightweight components and premium materials to achieve superior durability and power-to-weight performance. The technologically advanced design reduces in-cab noise levels significantly for a more comfortable driving environment. Selective Catalytic Reduction (SCR) in combination with exhaust gas recirculation (EGR) enables the PACCAR MX-13 to boast near-zero emissions.
Bottom line: Expect longer service intervals, increased uptime, lower operating costs and higher resale value.
Ratings |
||
|---|---|---|
| Engine Horsepower | Peak Torque lb-ft @ rpm | |
| 405 | 1,450 @ 900 | |
| 430 | 1,550 @ 900 | |
| 430 mt | 1,450/1,650 @ 900* | |
| 430 | 1,550 @ 1,000 | |
| 455 | 1,650 @ 900* | |
| 455 mt | 1,550/1,750 @ 900 | |
| 485 | 1,650 @ 1,000* | |
| 510 | 1,850 @ 1,000 |
Specifications |
|
|---|---|
| Configuration | Inline 6-cylinder |
| Bore x Stroke (mm) | 130 x 162 |
| Displacement | 12.9 lite rs |
| Dry Weight | 2,600 lbs |
| Oil Syste m Capacity | 42 U.S. quarts |
| Horsepower | 405-510 hp |
| Peak Torque | 1,450-1,850 lb.-ft. |
| Governed Speed | 2,200 rpm |
| Clutch Engagement Torque* | 973 lb.-ft. @ 800 rpm |
| B10 Design Life | 1,000,000 miles/ 1,600,000 km |
| Base Warranty** | 2 Years/250,000 miles/400,000 km |
** Extended Protection Plans Available
Maintenance Intervals |
||
|---|---|---|
| Maintenance Item | Miles | Km |
| Fuel Filter - Vocational Duty | 30,000 | 48,000 |
| Fuel Filter - Standard Duty | 40,000 | 60,000 |
| Oil and Filter - Vocational Duty | 30,000 | 48,000 |
| - Std. Duty > 20% Idle Time | 40,000 | 64,000 |
| - Std. Duty < 20% Idle Time | 60,000 | 96,000 |
| Coolant Filter (if equipped) | 160,000 | 256,000 |
| DEF Filter | 300,000 | 480,000 |
